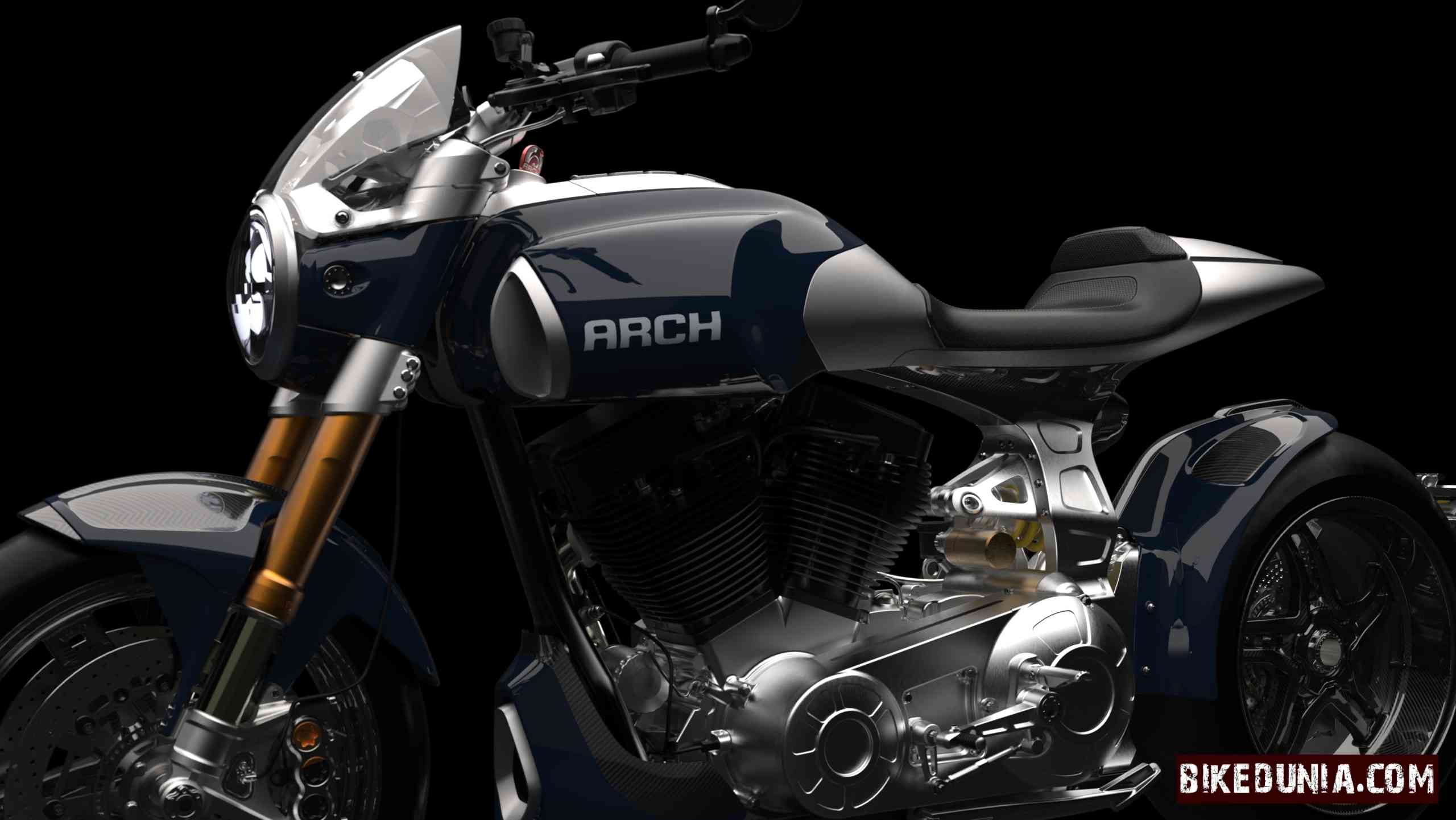

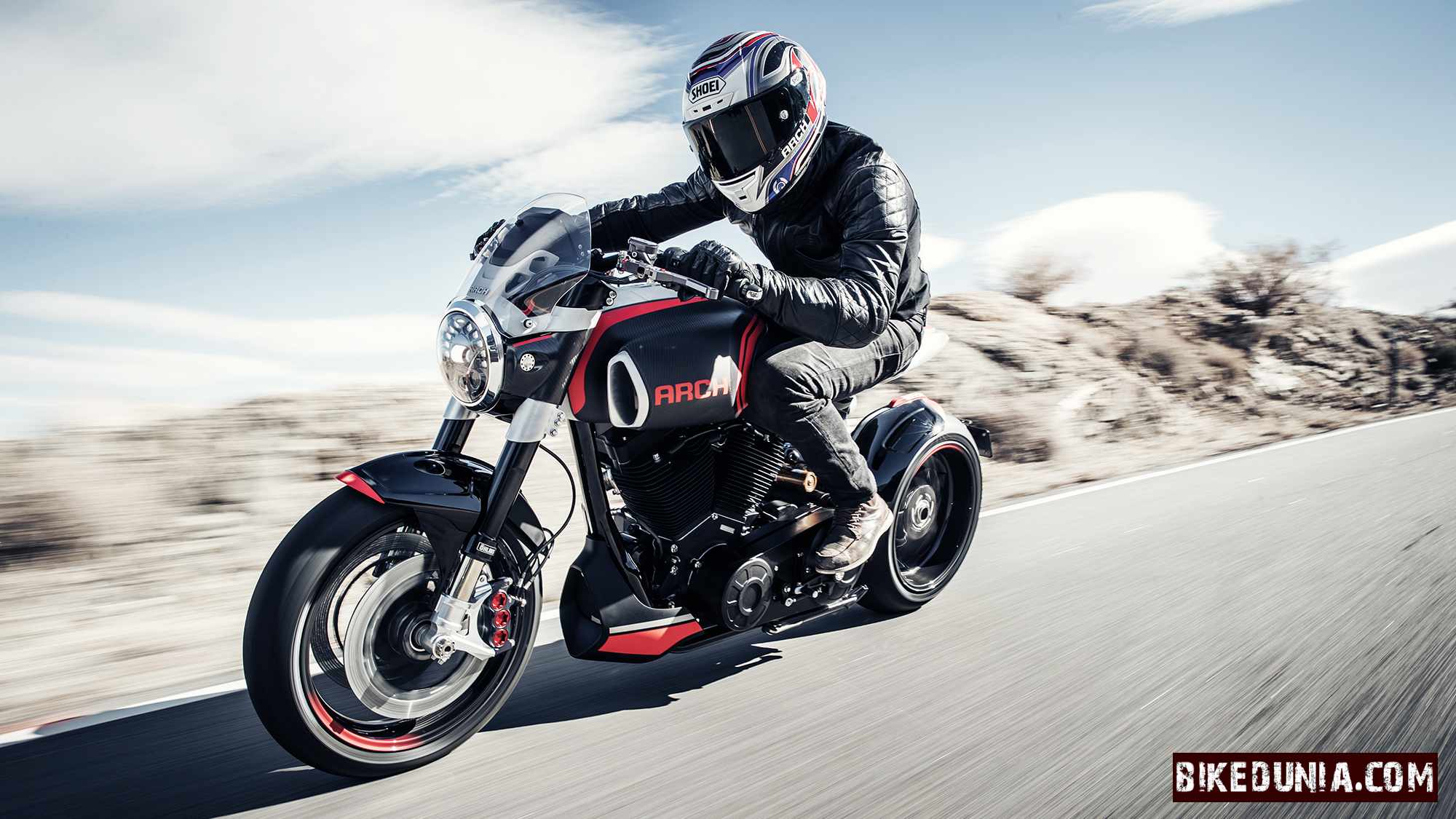

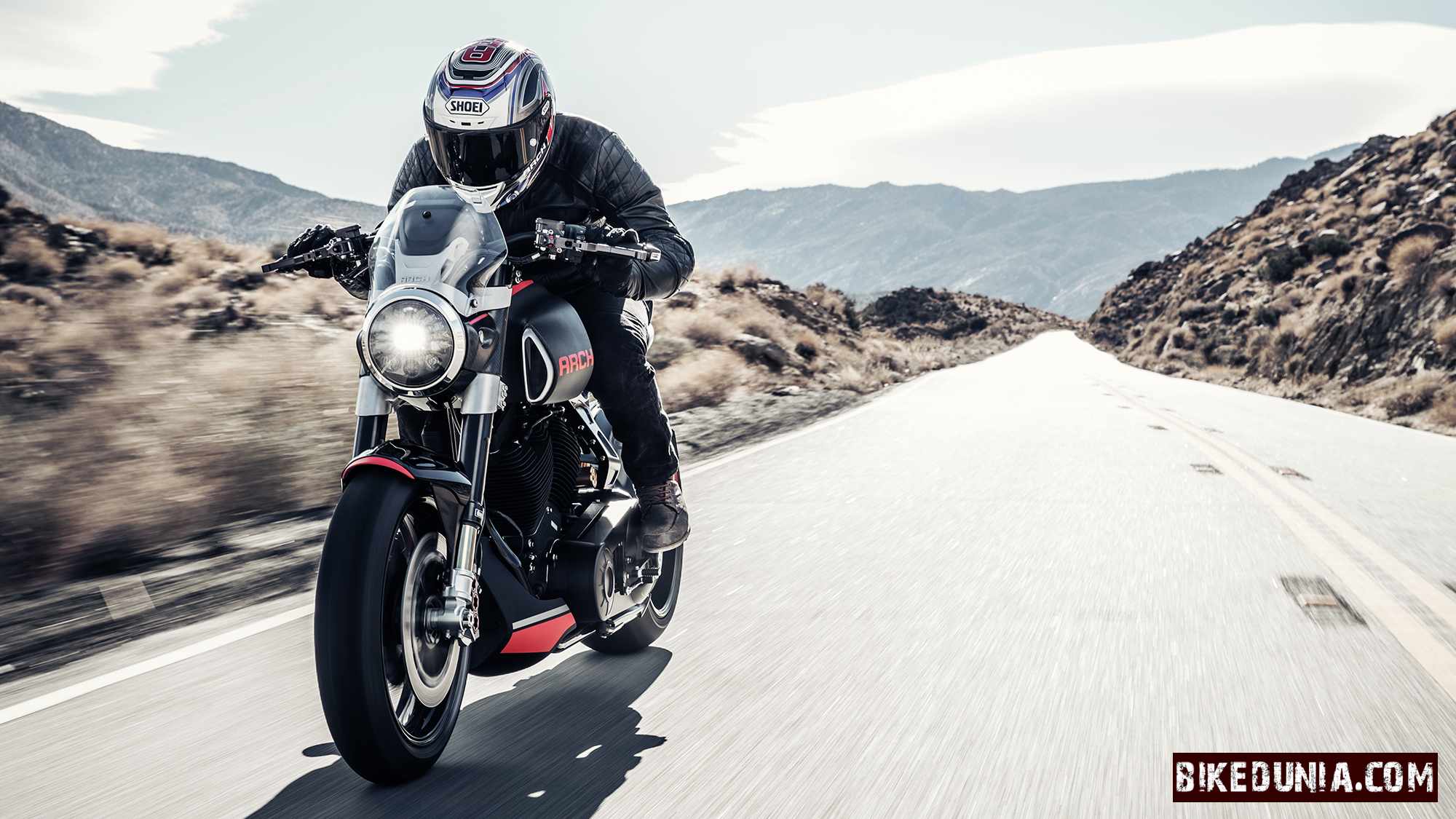

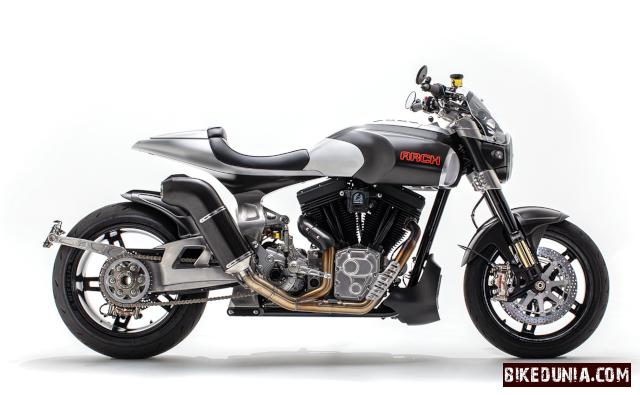

The ARCH 1s is an exclusive, hand-built masterpiece that blends the soul of an American cruiser with the agility of a street sport bike. It is powered by a massive 2032cc V-Twin engine that delivers an incredible 156 Nm of torque, ensuring effortless and heavy-hitting acceleration at any speed. To match its athletic character, the bike features rear/mid-mounted foot controls, which place you in a more aggressive, forward-leaning riding position for better control through corners. With its unique single-sided swingarm and extensive use of carbon fiber and billet aluminum, it is a high-performance "sport cruiser" designed for those who want a truly bespoke, race-inspired experience.
Not Available







| Vehicle Type | Motorcycle |
| Fuel | Petrol |
| Engine Displacement | 2032.00 cc |
| Engine Details | S&S Cycle T124 45-degree downdraft fuel-injected V-Twin engine |
| Maximum Torque | 156 NM |
| Transmission | 5 Speed |
| Drivetrain | Proprietary Five-speed drivetrain with compact high-torque mainshaft and compact dry clutch |
| Electricals | |
|---|---|
| Head Lamp | J.W. Speaker LED Headlight Model 8790 Adaptive 2 |
| Brakes | |
|---|---|
| Front Brake | Dual ISR 6-piston monobloc radial mount calipers with ISR floating dampened discs |
| Rear Brake | Single ISR 4-piston monobloc radial mount caliper with ISR semi-floating disc |
| ABS System | BOSCH |
| Chassis and Suspension | |
|---|---|
| Frame | Tubular steel frame with CNC-machined aluminum subframe; single-sided swingarm |

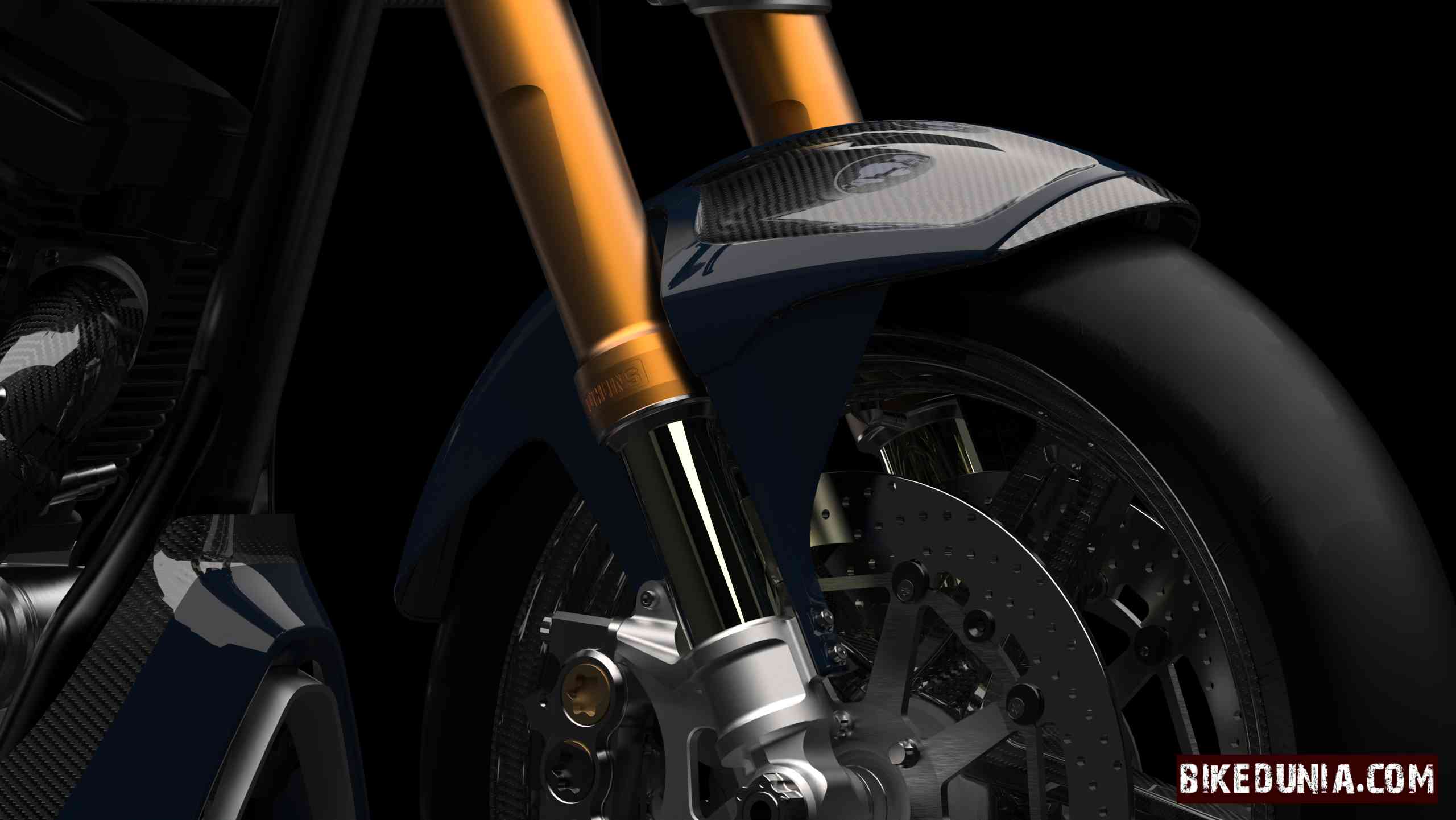

| Front Suspension | Fully adjustable ARCH/Öhlins FGRT series fork |
| Rear Suspension | Fully adjustable ARCH/Öhlins rear shock with reservoir and hydraulic pre-load adjustment |
| Tyres | |
|---|---|
| Wheels / Rim | Front Wheel: 17″ BST Carbon Fiber Rear Wheel: 17″ BST Carbon Fiber |
| Front Tyre | 120/70-17 Michelin Power RS |
| Rear Tyre | 240/45-17 Michelin Power RS |
| Dimensions | |
|---|---|
| Weight | 255 kg |
| Fuel Tank Capacity | 17 litres |
| Additional Details |
|---|
| Mid-mounted foot controls |
