Zero FX Electric Motorcycle
- Home ››
- Motorcycles ››
- Zero ››
- FX Line ››
- FX
Find full details on the Zero FX
Zero FX Price
Not Available
Features

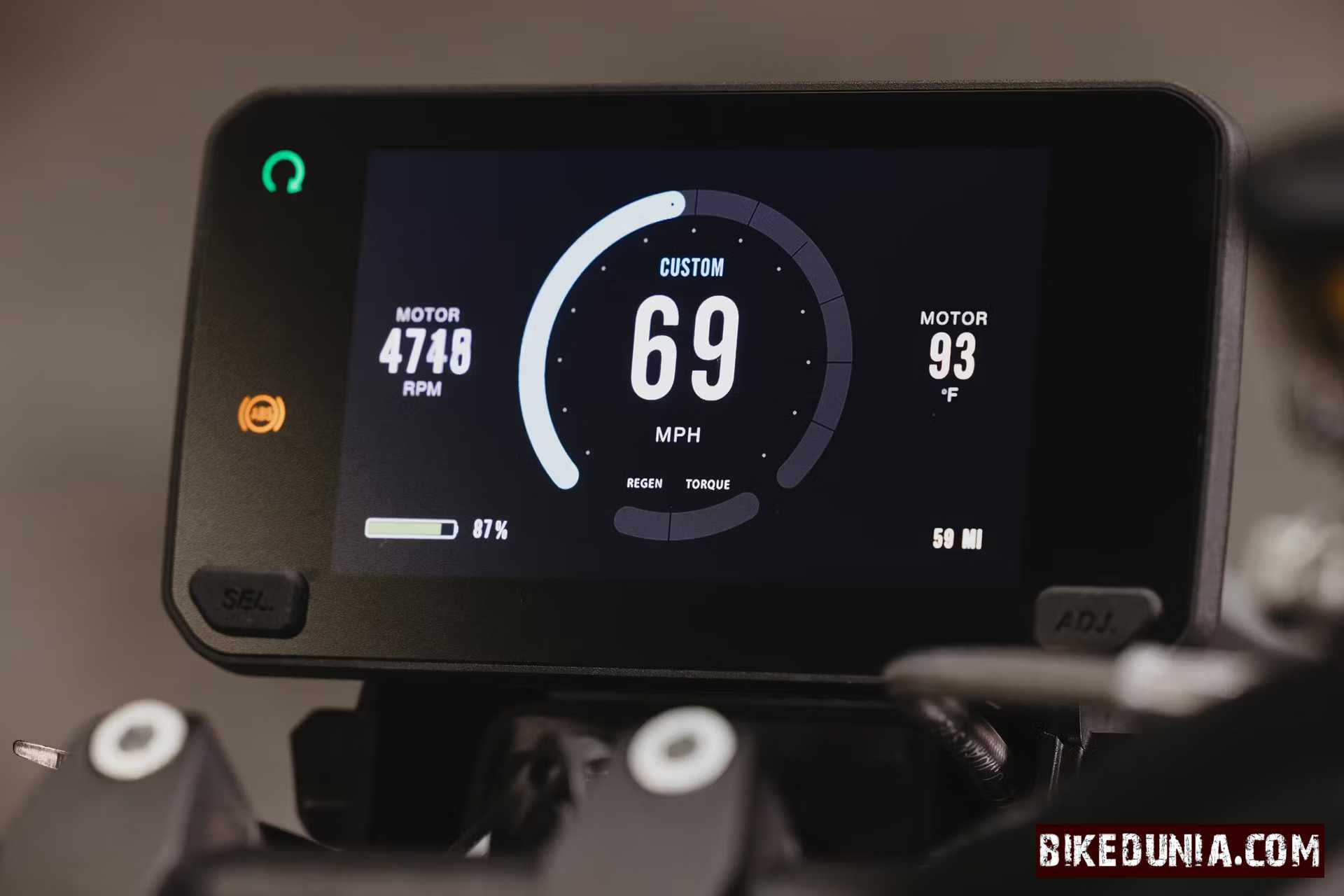

Full-color and optically bonded 5” TFT dash
Belt drive

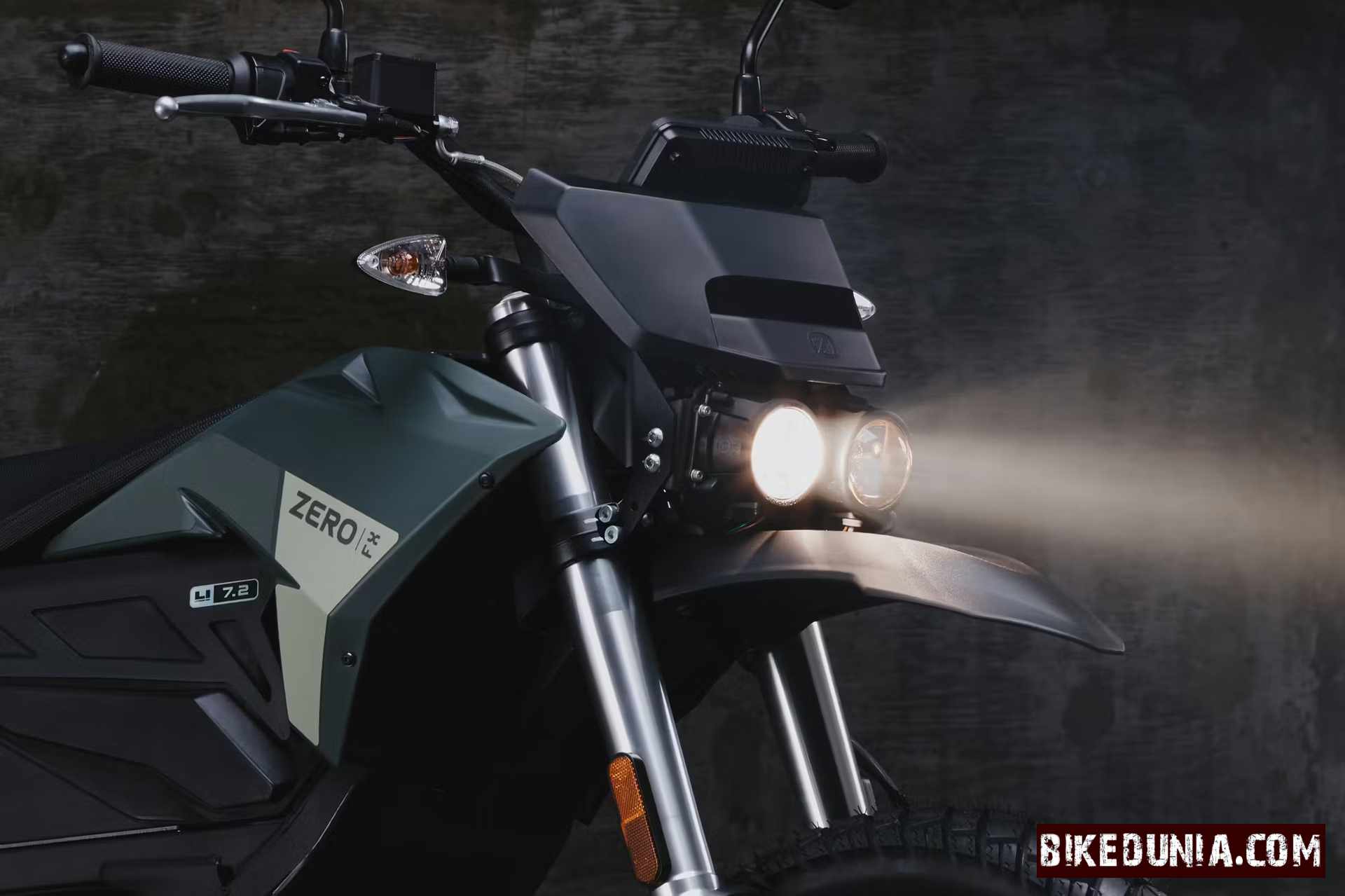

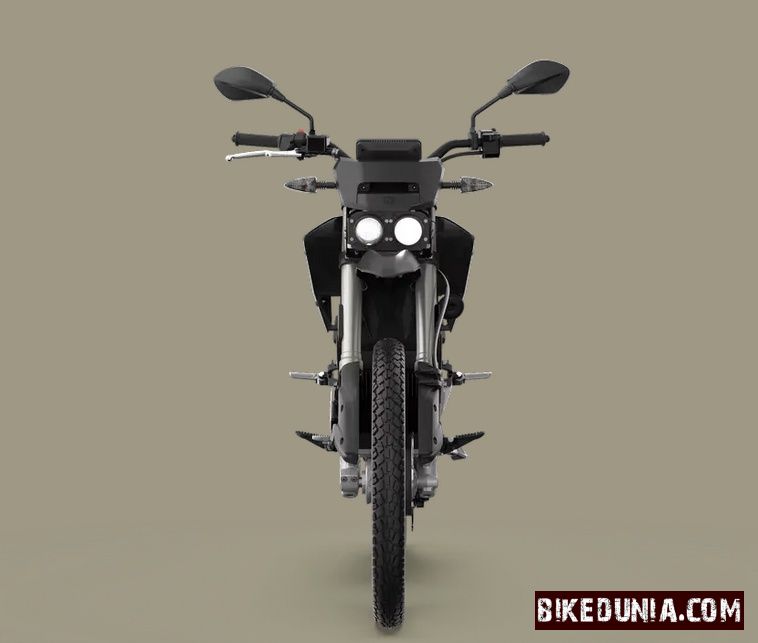

Twin projector beam headlamps and an integrated fly screen
Bosch anti-lock brake system (ABS)
Colours
Slate/Green
Specifications
| Vehicle Type | Motorcycle |
| Fuel | Electric |
| Cooling System | Air cooled |
| Maximum Power | 46 Ps @ 4300 rpm |
| Maximum Torque | 106 Nm |
| Load Carrying Capacity | 155 Kg |
| Transmission | Clutchless direct drive |

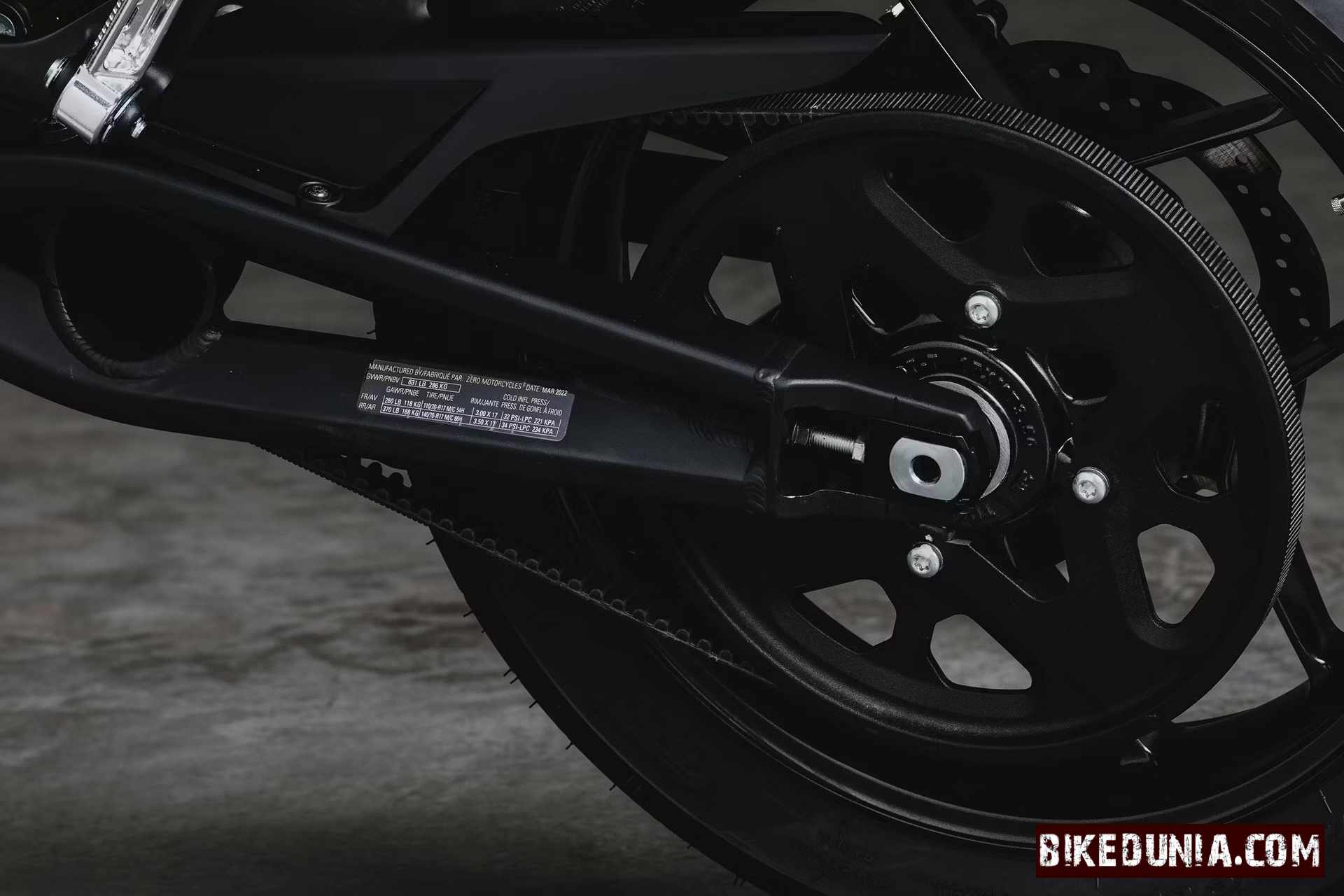

| Drivetrain | 90T / 18T, Poly Chain HTD Carbon belt |
| Top Speed | 137 kmph |
| Speed | Top speed (max): 85 mph (137 km/h) Top speed (sustained): 70 mph (113 km/h) |
| Motor Details |
|---|
| Z-Force 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor |
| Range |
|---|
| Maximum Range is 164 kms. City: 102 miles (164 km) Low-Speed Highway Commuting: 65 miles (104 km) High-Speed Highway Commuting: 57 miles (92 km) |
| Charging Time |
|---|
| Charge time (standard): 9.7 hours (100% charged) / 9.2 hours (95% charged) With one accessory charger: 4.1 hours (100% charged) / 3.6 hours (95% charged) With max accessory chargers: 1.8 hours (100% charged) / 1.3 hours (95% charged) |
| Display |
|---|
| 5” TFT dash |
| Electricals | |
|---|---|

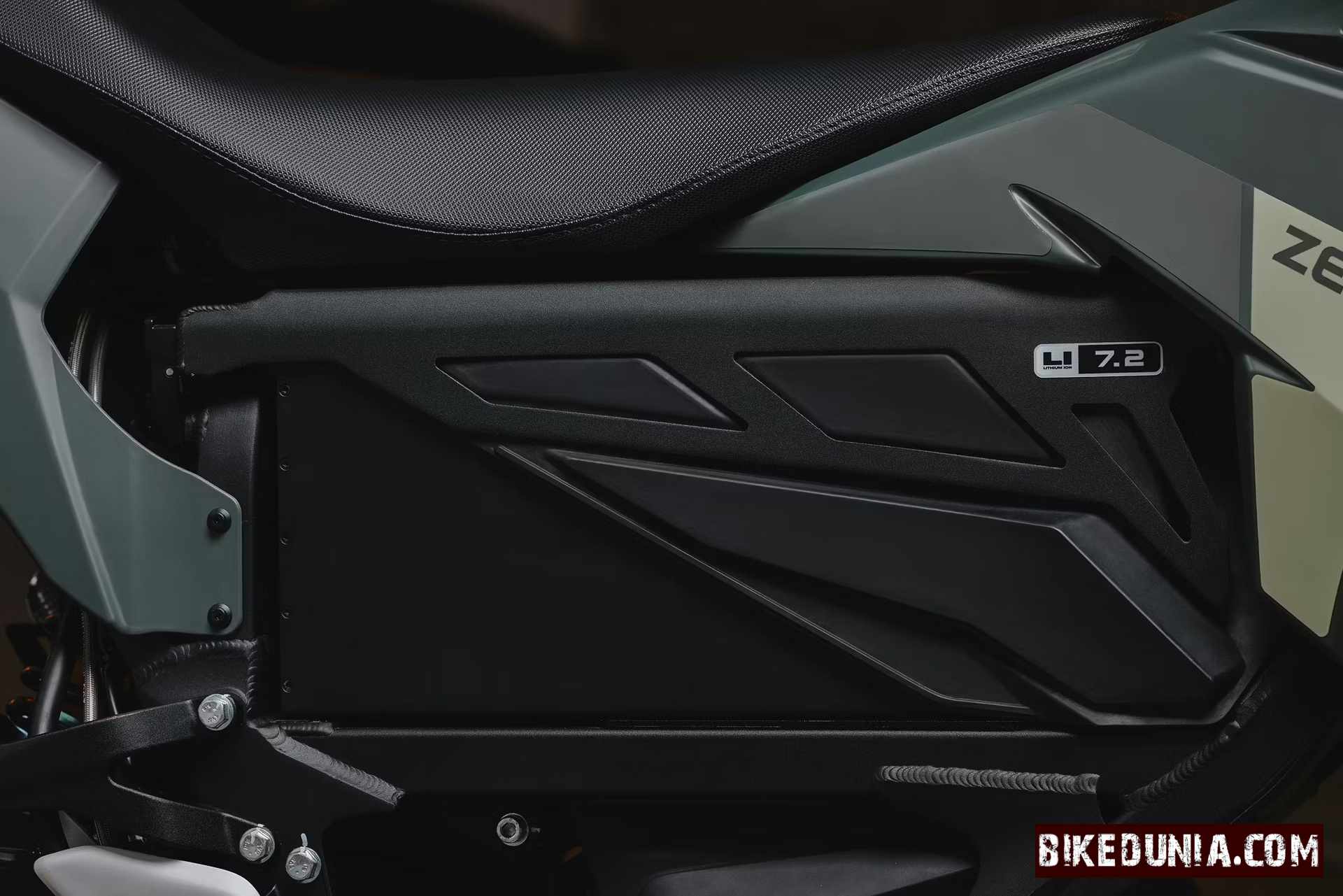

| Battery | Max capacity: 7.2 kWh Nominal capacity: 6.3 kWh |
| Charger | 650 W, integrated |
| Controller | High efficiency, 550 amp, 3-phase brushless controller with regenerative deceleration |
| Brakes | |
|---|---|
| Front Brake | Bosch Gen 9 ABS, J-Juan dual piston floating caliper, 240 x 4.5 mm disc |

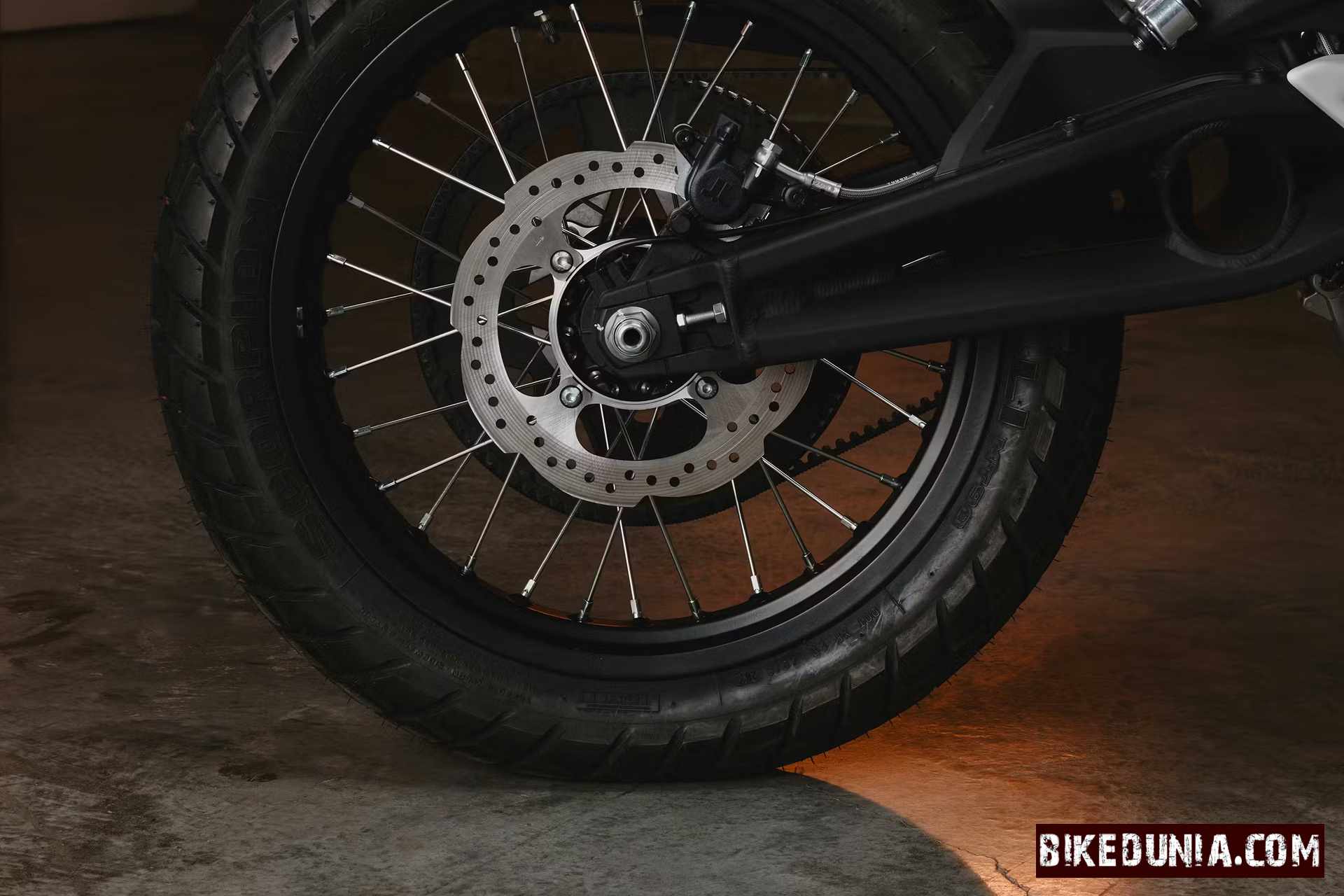

| Rear Brake | Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc |
| Chassis and Suspension | |
|---|---|
| Front Suspension | Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping, 218mm travel |
| Rear Suspension | Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping, 227mm travel |
| Tyres | |
|---|---|
| Wheels / Rim | Front wheel: 1.85 x 21 Rear wheel: 2.50 x 18 |
| Front Tyre | Pirelli Scorpion MT 90 A/T 90/90-21 |
| Rear Tyre | Pirelli Scorpion MT 90 A/T 120/80-18 |
| Dimensions | |
|---|---|
| Seat Height | 881 mm |
| Wheelbase | 1438 mm |
| Kerb Weight | 131 kg |
| Additional Details |
|---|
| Rake: 25.4° Trail: 4.1 in (104 mm) |
| Vehicle Warranty |
|---|
| Standard motorcycle warranty: 2 years Power pack warranty: 5 years/unlimited miles |
