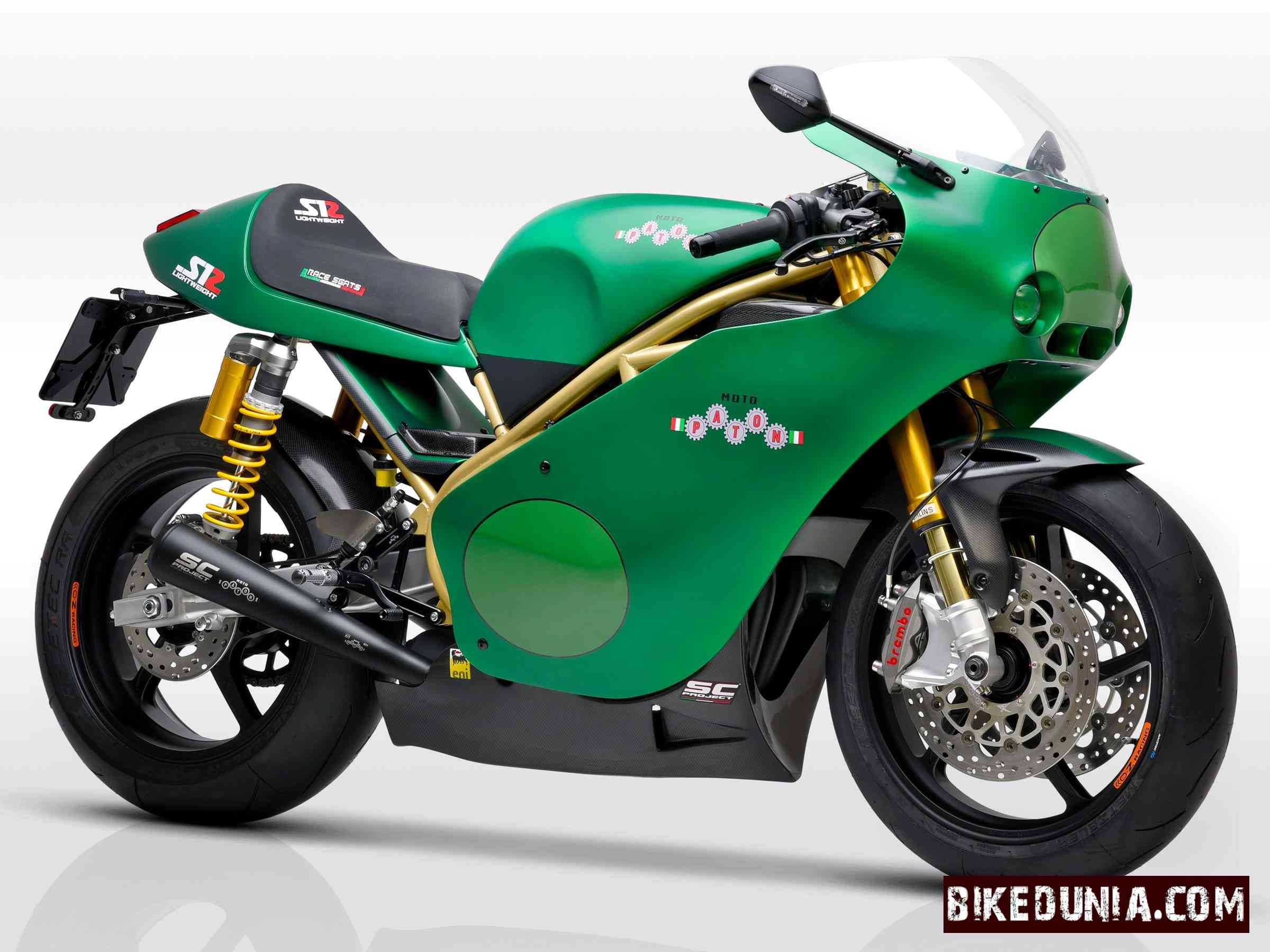

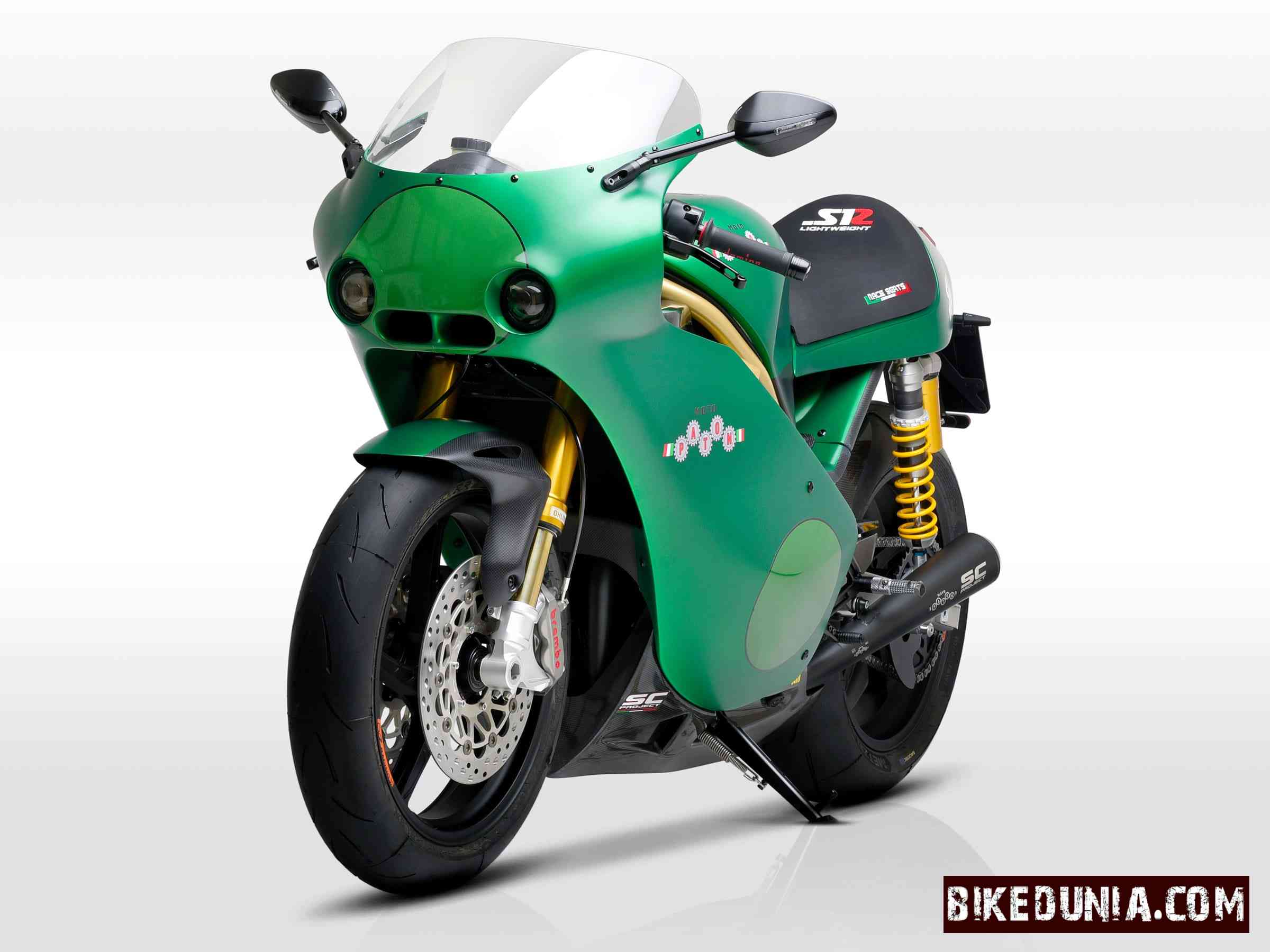

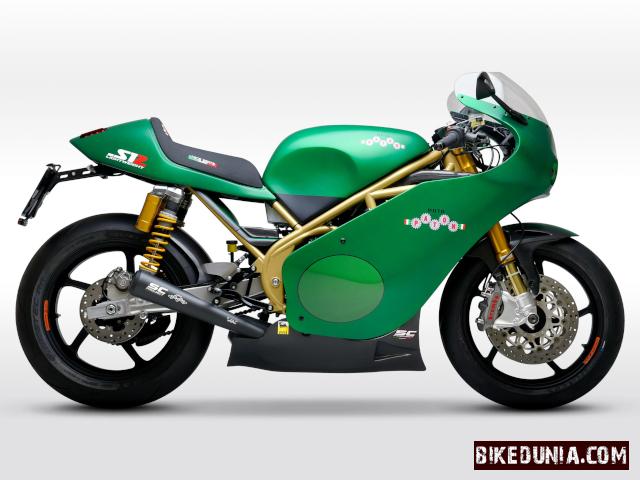

Paton S1-R Lightweight Motorcycle
- Home ››
- Motorcycles ››
- Paton ››
- S1-R ››
- S1-R Lightweight
Find full details on the Paton S1-R Lightweight
Paton S1-R Lightweight Price
Not Available
Similar Motorcycles
Specifications
| Vehicle Type | Motorcycle |
| Fuel | Petrol |
| Engine Displacement | 649.00 cc |
| Engine Details | Liquid-cooled 180° parallel 4-stroke twin cylinder |
| Engine Starting | Electric |
| Bore x Stroke | 83mm x 60mm |
| Compression Ratio | 10.8 : 1 |
| Clutch | Oil-bath multi-disc, manual |
| Cooling System | Liquid-cooled |
| Maximum Power | 72.1 Ps at 8500 rpm |
| Maximum Torque | 64 Nm at 7000 rpm |
| Transmission | Extractable 6-speed |
| Drivetrain | Final: Chain; pinion Z15; sprocket Z44 |
| Top Speed | 220 kmph |
| Brakes | |
|---|---|
| Front Brake | 2 floating 300 mm TK discs, Brembo radial M4-108 callipers, Brembo radial RCS 19 master cylinder with variable wheelbase |
| Rear Brake | 220 mm TK disc, Brembo P34C caliper, Brembo PS13 master cylinder |
| Chassis and Suspension | |
|---|---|
| Frame | T.I.G. welded high tensile steel tube frame |
| Front Suspension | Öhlins FGRT204 fork with 43 mm inverted stems, fully adjustable, 130 mm travel |
| Rear Suspension | Adjustable Ohlins double shock absorber, 130 mm travel |
| Tyres | |
|---|---|
| Front Tyre | Metzeler Racetec RR 120/70 ZR17 |
| Rear Tyre | Metzeler Racetec RR 180/55 ZR17 |
| Dimensions | |
|---|---|
| Length | 1980 mm |
| Seat Height | 810 mm |
| Wheelbase | 1390 mm |
| Kerb Weight | 165 kg |
| Fuel Tank Capacity | 16 litres |
| Additional Details |
|---|
| Steering angle: 24.5° Fore-edge: 105 mm SC-Project exhaust system ” K&N “ air filter |
